DHCP IP Allocation Operation

How Does DHCP Achieve IP Allocation Operation?

DHCP does its job with Messages like many protocol. Here, as we mentined before, DHCP uses DHCP Messages. Let’s see how these DHCP Messages are used in DHCP IP Allocation Operation.

Here, firstly we will explain the main DHCP Messages for a successfull DHCP IP Allocation Operation. In this operation four DHCP Message is used.

dhcp-ip-allocation-messages

Now, let’s see these four DHCP Messages and the other DHCP Messages one by one.

For IP allocation, firstly, DHCP Client sends a Broadcast DHCP Discover Message. This DHCP Discover Messege ask this question :

“Are there any DHCP Server in the Network?”

DHCP Client ask this question to all the nodes. Because DHCP Discover Message is sent as Broadcast. Here, the destination port is UDP 68. In this message, there are some other required fields but the most important one is the MAC address of DHCP Client.

All the nodes in the network receive the DHCP Discover Message. But, only the DHCP Server reply to this message with DHCP Offer Message. This DHCP Offer Message is also sent to all the nodes as Broadcast.

The meaning of this message is :

“I am a DHCP Server. And I can give you these IP address!”

Here, the destination port is UDP 67. This time, the message includes some more information :

• MAC address of DHCP Client,
• IP address of DHCP Server
• MAC address of DHCP Server
• Offered IP address and Subnet Mask

When DHCP Client gets the DHCP Offer Messages, it determines one of the DHCP Server and sends a Broadcast DHCP Request Message that says, it select a DHCP Server. In this DHCP section, DHCP Client can get many offers from the different DHCP Servers. But, it selects only one of them. This is generally the first sender.

This message means that:

“This DHCP Server can be my DHCP Server. Other DHCP Servers! Shut up!”

With this DHCP Request Message, DHCP Client says all the nodes that, it has determined the DHCP Server of its dreams. So, others DHCP Servers stop sending DHCP messages. The DHCP Server accepted is also get this DHCP Request Message.

At this stage, accepted DHCP Server sends a DHCP Ack Message.In this messages assigned IP address and other IP informations are send to the DHCP Client. This message is unicast, and is sent only to the DHCP server.

This message means that:

“Here is your IP information.”

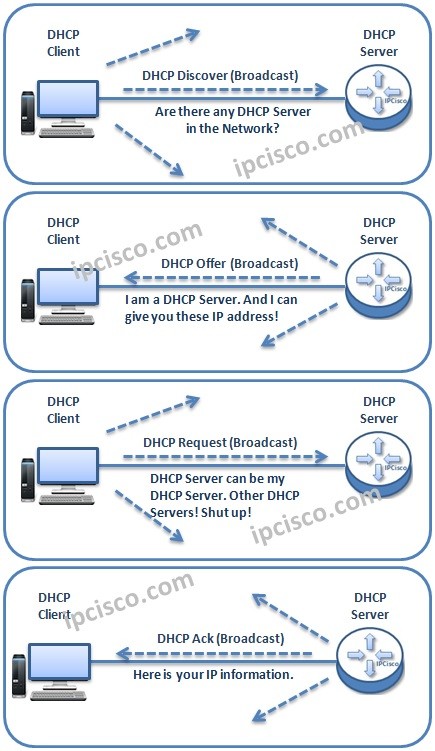

You can find the whole process of a successfull DHCP IP Address Allcoation Operation steps below:

dhcp-messages-and-ip-allocation

This is the scenario if everything is going good. But what if a DHCP Client request an IP addres and the requested IP address is not available in DHCP Server? At this time, DHCP Server sends a DHCP NAK Message.

This message means:

“I am sorry, I can not give this IP address.”

The other message is DHCP Release Message. This message is used when the DHCP Client want to release the associated IP address.

This message means:

“I would like to divorce from this IP address.”

DHCP Decline Message is sent from DHCP Client to DHCP Server when the IP that is offered is alread in use.

This means that :

“I can not use this IP, it is alredy in use.”

DHCP Inform Messages is sent from DHCP Client to Server that it has already ahs IP address but needs additional IP information.

This means that :

“I have already has an IP address. Give me additional IP information.”

You can find the detailed DHCP Messages and Their Meanings below. This list will be your guide for DHCP IP Allocation Operation.

dhcp-messages-and-functions

Basically, DHCP IP Allocation Operation is achieved with this messages like above.

Lease Time and Renewal of IP Address

IP addresses are assigned to the DHCP Clients for a lease time. In this lease time the IP address that is assigned by DHCP Server, needs to be renewed.

For renew process, there are some important time periods. Think about it. If we say X to the Lease time, at the half of this time (x/2),at X1, DHCP Client must renew this address with its DHCP Server.

At the 7/8 of this time, at X2, DHCP Client must renew this IP address with any DHCP Server.
If these processes unsuccessful, at the lease time, the IP address is expired and can not be used.

X = Lease Time
X1=X/2 = Own DHCP Server Renewal
X2=7X/8 = Any DHCP Server Renewal

dhcp-lease-time-and-renewal
