HCIA-Datacom Practice Test 1

Please wait while the activity loads.
If this activity does not load, try refreshing your browser. Also, this page requires javascript. Please visit using a browser with javascript enabled.

If loading fails, click here to try again

CONGRATULATIONS! YOU HAVE COMPLETED HCIA-Datacom Practice Test 1. YOU HAVE %%SCORE%% TRUE ANSWERS OUT OF %%TOTAL%% QUESTIONS. YOUR SCORE IS %%PERCENTAGE%%. %%RATING%%

Your answers are highlighted below.

Question 1

What is the primary purpose of a VLAN?

A	To calculate the shortest OSPF path
B	To assign IPv6 addresses
C	To provide Internet access
D	To encrypt Ethernet frames
E	To create separate Layer 2 broadcast domains

Question 2

Which Huawei command can configure a static IPv4 route?

A	route-static add 192.168.10.0/24 10.1.1.1
B	ip route 192.168.10.0/24 10.1.1.1
C	set ip route 192.168.10.0/24 10.1.1.1
D	ip route-static 192.168.10.0 255.255.255.0 10.1.1.1
E	static-route 192.168.10.0/24 via 10.1.1.1

Question 3

What is the primary purpose of an ACL?

A	Prevent all Layer 2 loops
B	Permit or deny traffic based on defined rules
C	Aggregate Ethernet links
D	Synchronize device clocks
E	Assign IP addresses dynamically

Question 4

Which three are STP port states? (Choose Three)

A	Learning
B	Forwarding
C	Routing
D	Trunking
E	Blocking

Question 5

At which layer of the OSI model are frames used?

A	Layer 3
B	Layer 4
C	Layer 1
D	Layer 5
E	Layer 2

Question 6

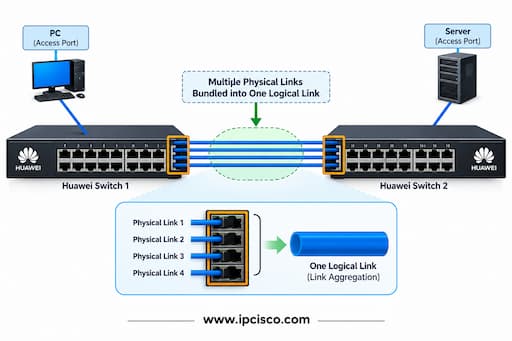

Which Huawei interface type is commonly used to bundle multiple Ethernet links into one logical link?

huawei hcia datacom link aggregation question

A	LoopBack
B	VLANIF
C	NULL
D	Tunnel
E	Eth-Trunk

Question 7

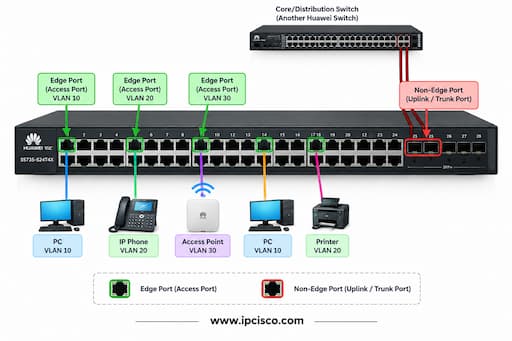

Which command globally configures ports as edge ports on a Huawei device?

huawei hcia datacom edge port configuration question

A	stp edged default
B	stp port default
C	stp edged-port
D	stp default edged-port
E	stp edged-port default

Question 8

Which Huawei command starts OSPF process 1?

A	ospf enable 1
B	ospf 1
C	protocol ospf 1
D	start ospf 1
E	router ospf 1

Question 9

Which protocol provides a standardized data-model-based method for configuring and managing network devices?

A	YML
B	VIRL
C	ARP
D	NETCONF
E	LACP

Question 10

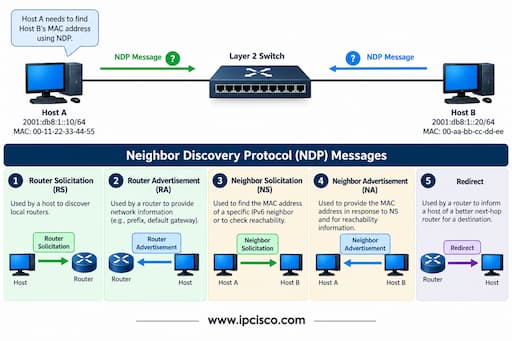

Which two are Neighbor Discovery Protocol (NDP) messages? (Choose Two)

A	NC
B	NS
C	NI
D	NN
E	NA

Question 11

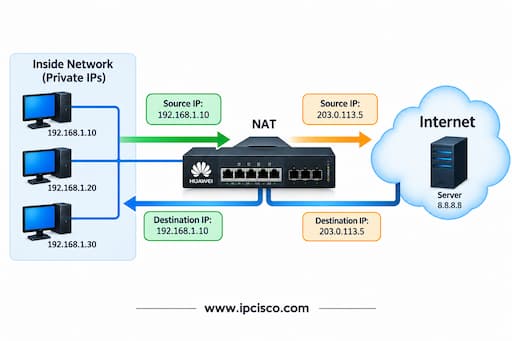

What is the primary purpose of Source NAT?

A	Create an Ethernet loop
B	Calculate an OSPF route
C	Translate a MAC address into an IP address
D	Assign VLAN IDs
E	Translate the source address of a packet

Question 12

If you need to assign IP addresses to 57 hosts, which subnet mask should you use most efficiently?

A	255.255.255.240
B	255.255.255.224
C	255.255.255.248
D	255.255.255.192
E	255.255.255.128

Question 13

Which Huawei platform provides centralized network management and intelligent network automation?

A	eNSP
B	VRP
C	Eth-Trunk
D	HWTACACS
E	iMaster NCE

Question 14

Which command is used to enter the system view on a Huawei device?

A	system-view
B	edit
C	enable
D	configure
E	config terminal

Question 15

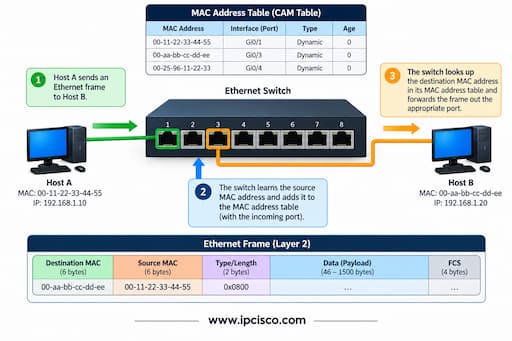

What does an Ethernet switch primarily use to forward a frame?

A	Destination MAC address
B	Source IP address
C	TCP port number
D	Source VLAN name
E	OSPF Router ID

Question 16

Which command sets the privilege level to 15 for the local user alex?

A	local-user alex privilege level 15
B	local-user alex privilege 15
C	local-user alex level 15
D	user alex level 15
E	user alex privilege level 15

Question 17

Which one is a valid IPv6 address?

A	FF00:10:0:0:13:1AD
B	2001::1122:0:0:0::123
C	2001:8500::1478:AAA::9
D	FF00:10:0:0:13:1AD:FD:AA:A
E	FF00:810:0:8:106:1FF:F12:1

Question 18

Which DHCP message is initially sent by a client to locate DHCP servers?

A	DHCPOFFER
B	DHCPDISCOVER
C	DHCPACK
D	DHCPRELEASE
E	DHCPREQUEST

Question 19

Which command is used to display NAT statistics on a Huawei device?

A	show nat statistics
B	show statistics nat
C	display nat statistics
D	show nat details
E	display statistics nat

Question 20

Which Huawei command creates VLAN 100 in the system view?

A	create vlan 100
B	vlan create 100
C	vlan-id 100
D	vlan 100
E	set vlan 100

Question 21

Which metric does OSPF use to select the best path?

A	Hop count
B	MAC address
C	Cost
D	AS-PATH
E	VLAN priority

Question 22

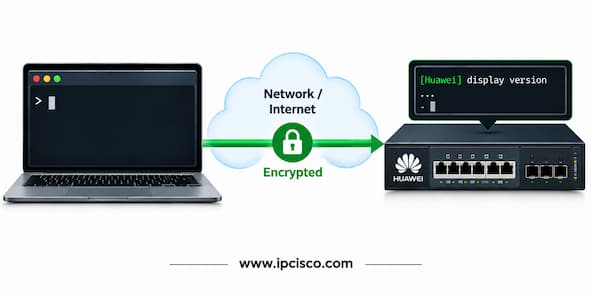

Which protocol provides encrypted remote command-line access to a network device?

encrypted remote access huawei HCIA datacom

A	FTP
B	SSH
C	SNMP
D	Telnet
E	TFTP

Question 23

Which of the following IP addresses are in the private IPv4 address ranges? (Choose Three)

A	17.3.4.1
B	172.16.47.9
C	192.168.51.1
D	172.35.5.1
E	192.168.248.45

Question 24

Which protocol supported by Huawei devices separates authentication, authorization, and accounting and is commonly used for device administration?

A	RADIUS
B	FTP
C	HWTACACS
D	SNMP
E	DHCP

Question 25

Which prefix is used for IPv6 Global Unicast Addresses?

A	FC00::/7
B	FD00::/7
C	FE80::/10
D	2000::/3
E	FF00::/8

Question 26

Which protocol is used to dynamically negotiate link aggregation in an Ethernet network?

A	OSPF
B	DHCP
C	STP
D	LACP
E	SNMP

Question 27

Which commands configure GigabitEthernet 1/1/1 as a trunk interface and allow all VLANs? (Choose Three)

A	port trunk allow-pass vlan all
B	port type-trunk
C	port link-type trunk
D	port trunk allowed vlan all
E	interface GigabitEthernet 1/1/1

Question 28

Which Huawei VRP command displays the current configuration of a device?

A	show configuration
B	show running-config
C	display system
D	display configuration current
E	display current-configuration

Question 29

What is the primary purpose of STP in an Ethernet network?

A	Assign IP addresses
B	Prevent Layer 2 switching loops
C	Encrypt traffic
D	Perform NAT
E	Establish OSPF adjacencies

Question 30

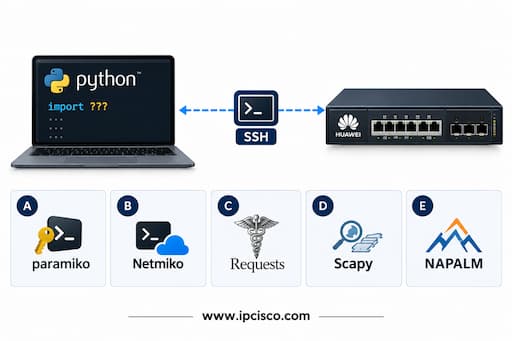

Which Python library is specifically covered in HCIA-Datacom for remotely interacting with network devices using SSH?

huawei hcia datacom pythpn library questions

A	NumPy
B	Paramiko
C	Pandas
D	Flask
E	Matplotlib

Once you are finished, click the button below. Any items you have not completed will be marked incorrect. Get Results

There are 30 questions to complete.
