HCIA-Datacom Practice Test 2

Please wait while the activity loads.
If this activity does not load, try refreshing your browser. Also, this page requires javascript. Please visit using a browser with javascript enabled.

If loading fails, click here to try again

CONGRATULATIONS! YOU HAVE COMPLETED HCIA-Datacom Practice Test 2. YOU HAVE %%SCORE%% TRUE ANSWERS OUT OF %%TOTAL%% QUESTIONS. YOUR SCORE IS %%PERCENTAGE%%. %%RATING%%

Your answers are highlighted below.

Question 1

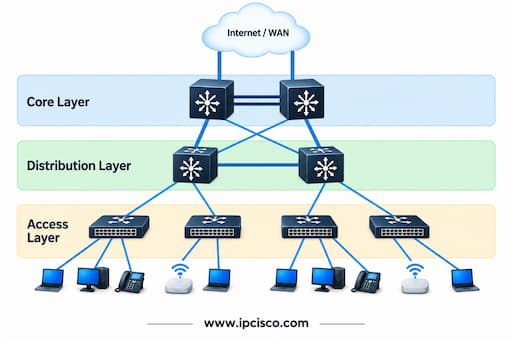

In a traditional hierarchical campus network, which layer primarily connects end-user devices to the network?

traditional hierarchical campus network HCIA question

A	WAN layer
B	Internet layer
C	Transport layer
D	Access layer
E	Core layer

Question 2

Which three are benefits of Ethernet Link Aggregation? (Choose Three)

A	Load balancing
B	NAT translation
C	Increased bandwidth
D	IPv6 address assignment
E	Increased reliability

Question 3

Which command displays basic SNMP system information on a Huawei device?

A	display snmp sys-info
B	display snmp-agent info
C	display snmp agent-sys
D	display snmp-agent sys-info
E	display agent sys-info

Question 4

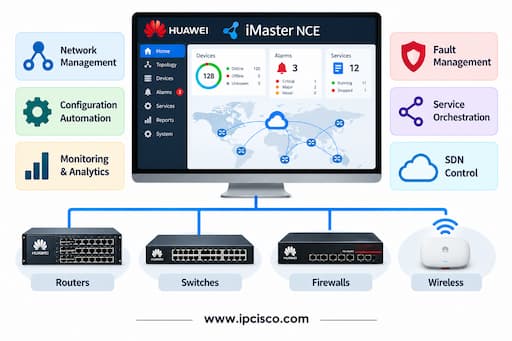

Which function is associated with Huawei iMaster NCE?

imaster NCE huawei HCIA datacom question-example

A	Physical Ethernet frame transmission
B	Manual cable testing
C	Wireless signal generation
D	Centralized network management and automation
E	IPv4-to-IPv6 address conversion only

Question 5

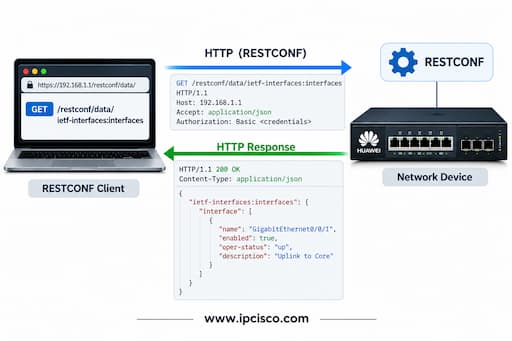

Which data format is commonly used with RESTCONF?

A	ELF
B	JSON
C	JPEG
D	MP3
E	PCAP

Question 6

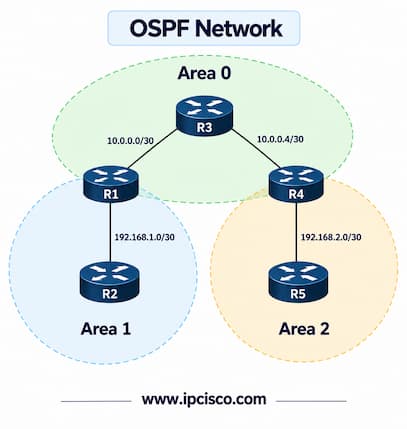

Which type of OSPF router connects different OSPF areas?

A	ABR
B	None of them
C	DR
D	BDR
E	ASBR

Question 7

Which command assigns VLAN 20 to an access interface on a Huawei device?

A	port vlan 20
B	switchport access vlan 20
C	access vlan-id 20
D	port default vlan 20
E	vlan access 20

Question 8

At which OSI layer does a traditional Ethernet switch primarily operate?

A	Tranport
B	Physical
C	Application
D	Network
E	Data Link

Question 9

How long is an OSPF Router ID?

A	16 bits
B	32 bits
C	24 bits
D	128 bits
E	48 bits

Question 10

Which three are common Ethernet traffic types? (Choose Three)

A	Broadcast
B	Unicast
C	All of them
D	Anycast
E	Multicast

Question 11

What is the first usable host address of the subnet containing 172.105.180.0/21?

A	172.105.170.1
B	172.105.180.1
C	172.105.172.1
D	172.105.175.1
E	172.105.176.1

Question 12

Which protocol provides a RESTful interface for accessing network configuration and operational data?

A	LACP
B	RESTCONF
C	TFTP
D	YAML
E	OPENFLOW

Question 13

Which protocol is a standards-based Layer 2 neighbor discovery protocol?

A	ARP
B	ICMP
C	CDP
D	LLDP
E	STP

Question 14

Which commands configure the IP address 10.10.10.1/24 on VLANIF 20 on a Huawei device? (Choose Two)

A	ip address 10.10.10.1 255.255.255.0
B	interface Vlanif 20
C	ip address 10.10.10.1 24
D	interface vlan 20
E	ip address 10.10.10.1 0.0.0.255

Question 15

What is the decimal equivalent of the binary number 10111110?

A	186
B	122
C	182
D	190
E	126

Question 16

Which IEEE standard family defines wireless LAN technologies?

A	IEEE 802.1
B	IEEE 802.1Q
C	IEEE 802.11
D	IEEE 802.1X
E	IEEE 802.3

Question 17

Which Huawei command can be used to test IP connectivity to a destination?

A	ping
B	connect
C	ip-check
D	test-ip
E	reach

Question 18

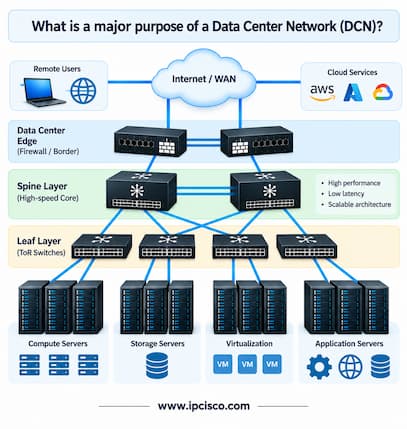

What is a major purpose of a Data Center Network (DCN)?

Data Center Network DCN huawei-HCIA question

A	Replace IPv4 with IPv6 on the Internet
B	Prevent all broadcast traffic
C	Replace operating systems on servers
D	Provide only wireless connectivity
E	Connect computing, storage, and network resources within a data center

Question 19

Which command returns to the previous configuration view on a Huawei device?

A	up
B	go
C	quit
D	back
E	exit

Question 20

Which two are characteristics of UDP? (Choose Two)

A	Has a longer header than TCP
B	Fast
C	Slow
D	Connectionless
E	Connection Oriented

Question 21

Which operating system is used by Huawei network devices?

A	TIMOS
B	VRP
C	IOS
D	IOS XR
E	JUNOS

Question 22

Which is a valid compressed form of the IPv6 address 2001:FFCA:0008:0012:10BB:00AA:0008:0001?

A	2001:FFCA:8:12:10BB:AA:8:01:1
B	2001:FFCA:8:12:10BB:AA:8:1
C	2001:FFCA::8::12:10BB:AA:8:1
D	2001:FFCA:8:12:10BB:AA::8::1
E	2001:FFCA:0008:0012:10BB:00AA:0008

Question 23

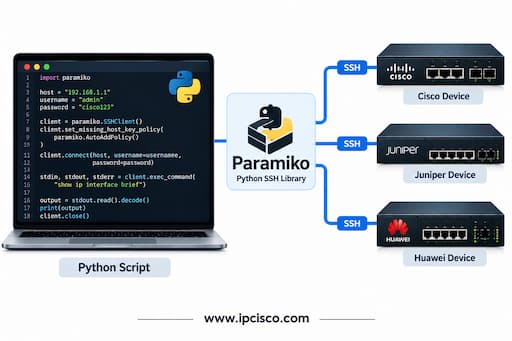

What is Paramiko commonly used for in network automation?

Paramiko network automation question huawei hcia-datacom

A	Capturing wireless frames
B	Creating VLAN tags
C	Establishing SSH connections to network devices
D	Calculating OSPF cost
E	Providing DHCP addresses

Question 24

Which protocol is primarily used to monitor network devices and collect management information?

A	SNMP
B	ARP
C	STP
D	DHCP
E	FTP

Question 25

A user can ping the default gateway but cannot access a remote server. Which conclusion is most reasonable as the first troubleshooting observation?

A	The user's IP address must be incorrect
B	The user's local connection to the gateway is working
C	The switch has no MAC address table
D	The Ethernet cable must be faulty
E	STP has definitely failed

Question 26

Which Huawei command configures GigabitEthernet 0/0/1 as an access interface?

A	port mode access
B	interface-mode access
C	switchport mode access
D	port link-type access
E	port access enable

Question 27

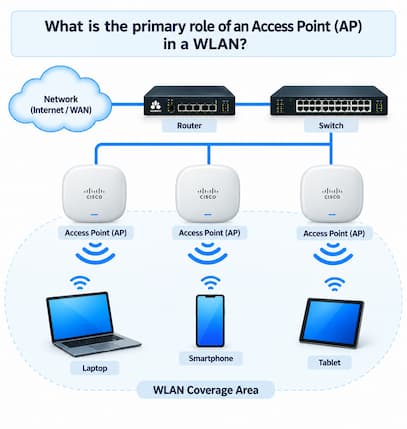

What is the primary role of an Access Point (AP) in a WLAN?

access point wlan question huawei-HCIA question

A	Calculate OSPF routes
B	Aggregate WAN links
C	Translate private IP addresses
D	Provide wireless clients with access to the network
E	Assign MPLS labels

Question 28

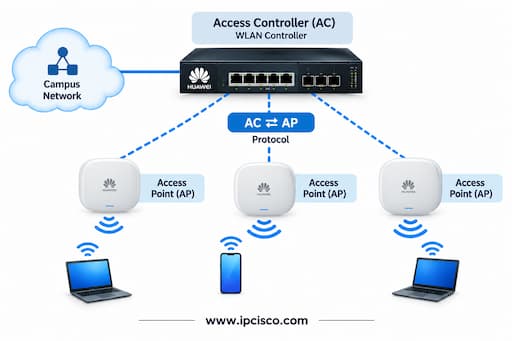

Which protocol is commonly used between an Access Controller (AC) and Access Points (APs) in a centralized WLAN architecture?

huawei HCIA question wireless networks ap ac

A	SNMP
B	LACP
C	OSPF
D	STP
E	CAPWAP

Question 29

What is the standard data rate of Fast Ethernet?

A	1000 Mbps
B	10000 Mbps
C	10 Mbps
D	100 Mbps
E	1

Question 30

Which Huawei command displays brief information about IP interfaces?

A	display ip brief
B	show ip interface brief
C	display interface ip brief
D	show interface brief
E	display ip interface brief

Once you are finished, click the button below. Any items you have not completed will be marked incorrect. Get Results

There are 30 questions to complete.
