Huawei GRE Tunnel Configuration

In this lesson, we will use Huawei Routers, to configure GRE Tunnels. For our example, we will use the topology given below:

Huawei-gre-tunnel-example

GRE Tunnel Configuration

Let’s start to configure Huawei Router 1 firstly for the GRE Tunnel.

Firstly, we will create Tunnel interface. Then, we will give the Tunnel IP Address to this Tunnel Interface. After that, we will set the source and destination physical addresses.

system-view
[Huawei-Router1] interface Tunnel 1/1/1
[Huawei-Router1-Tunnel1/1/1] ip address 10.0.0.1 24
[Huawei-Router1-Tunnel1/1/1] tunnel-protocol gre
[Huawei-Router1-Tunnel1/1/1] source 100.100.100.1 24
[Huawei-Router1-Tunnel1/1/1] destination 200.200.200.1 24
[Huawei-Router1-Tunnel1/1/1] quit

Now, it is time to configure Router 2. We will configure the same things in Router 2, only the IP addresses will change.

system-view
[Huawei-Router2] interface Tunnel 1/1/1
[Huawei-Router2-Tunnel1/1/1] ip address 10.0.0.2 24
[Huawei-Router2-Tunnel1/1/1] tunnel-protocol gre
[Huawei-Router2-Tunnel1/1/1] source 200.200.200.1 24
[Huawei-Router2-Tunnel1/1/1] destination 100.100.100.1 24
[Huawei-Router2-Tunnel1/1/1] quit

Static Routes

After Tunnel configuration, we need to tell the routes of undirectly connected networks to the routers. Here, we will do it with Static Routes.

[Huawei-Router1] ip route-static 172.16.2.0 24 Tunnel 1/1/1
[Huawei-Router2] ip route-static 172.16.1.0 24 Tunnel 1/1/1

Verification

To verify Huawei GRE Tunnel, we can use “display interface Tunnel” and “display ip routing-table“

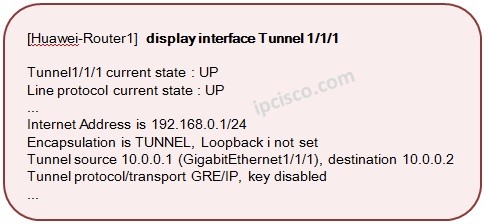

[Huawei-Router1] display interface Tunnel


huawei-gre-configuration

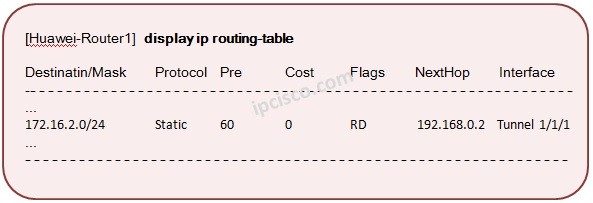

[Huawei-Router1] display ip routing-table


huawei-gre-configuration

Other GRE (Generic Routing Encapsulation) Articles…

GRE (Generic Routing Encapsulation) – Overview
GRE (Generic Routing Encapsulation) – Cisco GRE Tunnel Configuration with Packet Tracer
GRE (Generic Routing Encapsulation) – Huawei GRE Tunnel Configuration
